Illustration

The quadrics of a confocal system fall into three families: ellipsoids, one-sheeted hyperboloids, and two-sheeted hyperboloids. Surfaces from different families intersect each other orthogonally. Their intersection curves are curvature lines.

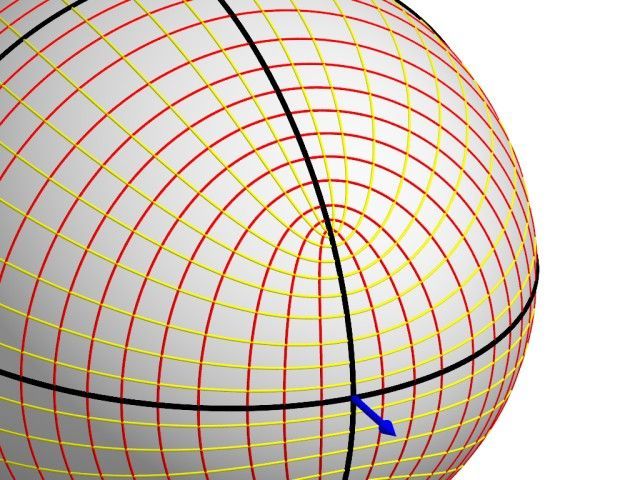

An ellipsoid and its curvature lines near one of the umbilic points are displayed.

Created by Roman Hager (2010) using POV-Ray - The Persistance of Vision Raytracer.
